DESCRIPTION:
The coating thickness gauge can nondestructive measure the thickness
of non-conductive coatings on metal surfaces and non-ferromagnetic metal
coatings on ferromagnetic metals (e.g. iron, nickel, cobalt, etc.), including
measuring the thickness of iron, stainless steel surface paint or galvanized
layer, measuring the thickness of aluminum,copper surface paint or plastic
film.

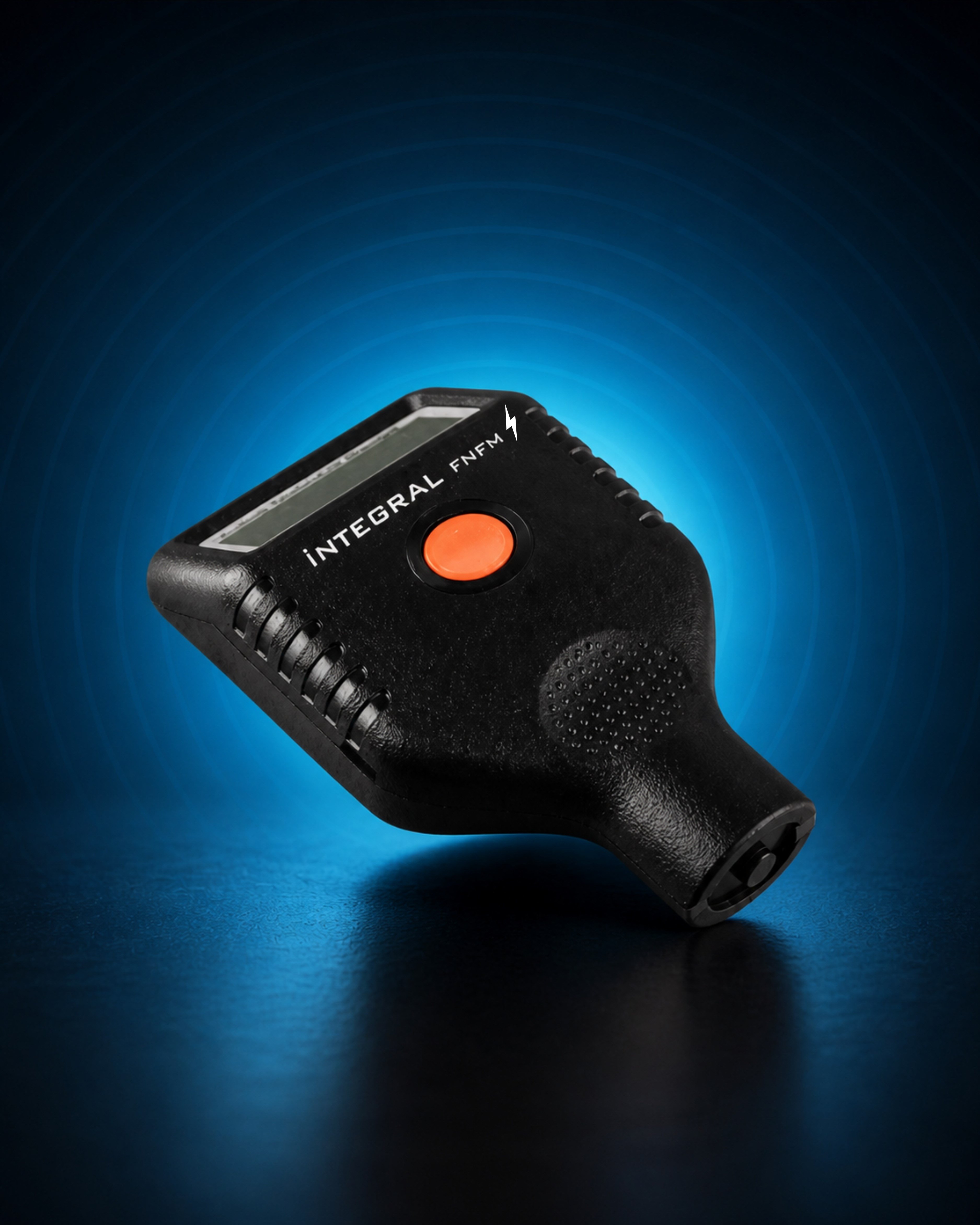

EC-470 has a built-in integrated probe of magnetic induction and eddy
current, with a measurement range of 0~2000μm and a measurement
accuracy of ±(3%+1μm), and the resolution is up to 0.1μm.

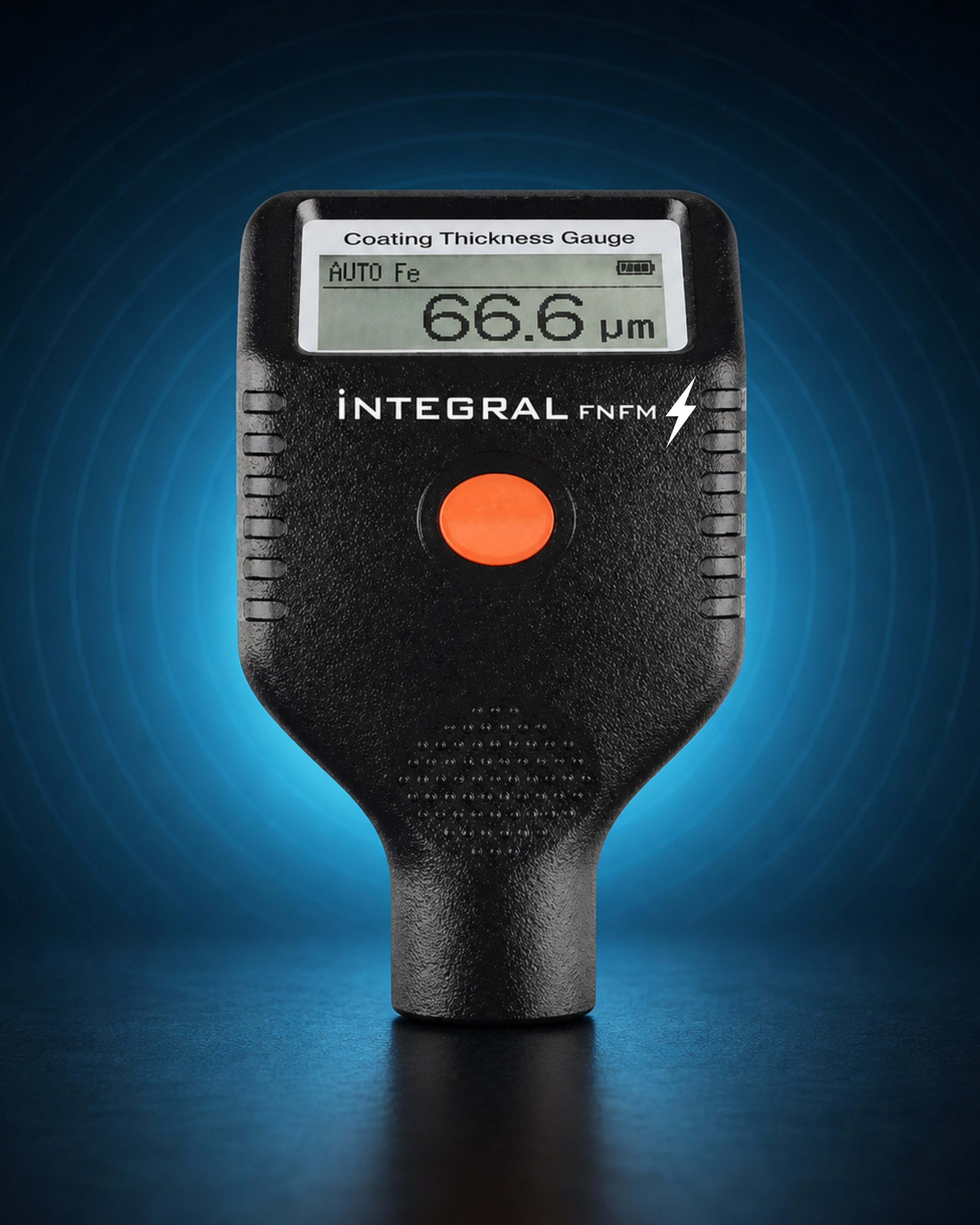

EC-470 has a streamlined display interface with an automatic rotating
screen function, which can display the average, minimum and maximum
values at the same time. When measuring, the users only needs to quickly
fit the probe tip to the surface of the object to be measured. During the
process of the probe shrinking to the inside of the instrument, it can
automatically distinguish the properties of the substrate and measure the
thickness of the coating (plating) layer.
FEATURES:
Ruby probe
Resolution up to 0.1μm
Accuracy ±(3%+1μm)
Measuring range 0~2000μm
Iron galvanized base material
identification
Statistic analysis of data
Users calibration supported
Maximum measurement speed 2
readings/sec
Auto-rotate screen
Display with backlight
Power off automatically
Battery protection
APPLICATION:
Car paint thickness detection
Shipbuilding
Metal anti-rust treatment
Film thickness detection
Hardware parts processing
Coating Thickness Gauge
NOTICES:
• Avoid sun exposure.
• Avoid direct contact with corrosive chemicals.
• Be careful of falling.
WARNING:
• Disassemble without permission prohibited!
• Strictly prevent strong electricity and static shock!
Probe type Internal probe
Measuring principle Fe:Magnetic induction;NFe:Eddy currents
Measuring range 0~2000μm
Accuracy ±(3%+1μm)
Resolution 0.1μm(0~100μm);1μm(>100μm)
Unit μm, mm, mil
Iron galvanized base
material identification 3~500μm
Calibration Zero calibration
Statistic Number of readings, Max, Min,Mean
Probe trigger force 0.3~0.8N
Minimum curvature radius Convex 5mm;Concave 25mm
Minimum measuring area Diameter 15mm
Minimum thickness of
substrate Fe:0.30mm;NFe:0.05mm
Maximum measuring rate 2 readings/s
Display Dot matrix display
Operation environment Temperature:-10~50℃;Humidity:20~90%RH (Non-condensing)
Storage environment Temperature:-20~60℃;Humidity:20~90%RH (Non-condensing)
Power supply 2 pcs 1.5V AAA alkaline batteries
2 pcs 1.2V AAA rechargeable batteries
Protection class IP40
Size 102*53.6*25mm
Case material ABS
Weight About 80g (No battery)
